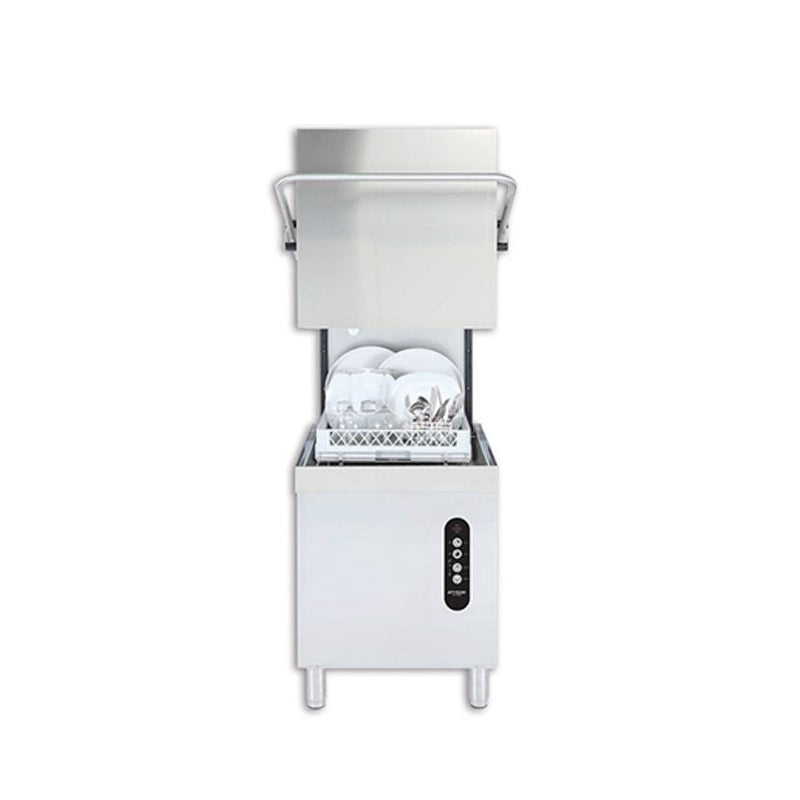

Jet-Tech EV22 Door Type Dishwasher High-Temp
Ask an Expert
Couldn't load pickup availability
High-temp sanitizing rinse delivers reliable, NSF-compliant results.
- Durable AISI 304 stainless steel body and tank stand up to daily use.
- Filter system and double scrap filters simplify cleaning and maintenance.
- Alternating booster/tank heating reduces peak power draw to save energy.
- Flexible install — set up inline or in a corner with simple field changes.
This Jet Tech EV22 door-type unit is built to be easy to live with. The door opens high for comfortable loading, and the front control panel shows wash and rinse temperatures at a glance. Reinforced fiberglass wash and rinse arms twist out quickly, so routine cleaning is fast.
Day-to-day operation is straightforward. The machine fills automatically and maintains water level on its own. A safety micro-switch stops the wash pump if the door is opened, protecting staff and equipment. Standard 19.75" square racks mean you can use common commercial racks already in your kitchen.
| Model | Jet-Tech EV22 |
| Type | Door Type Dishwasher (High Temperature) |
| Rack Size | 19.75" × 19.75" (500 × 500 mm) |
| Racks per Hour | Up to 30 racks/hour |
| Cycle Times | Two programmable cycles: 2–3 minutes; final rinse 12–15 seconds |
| Wash Tank Capacity | 5.25 U.S. gal (21 L) |
| Wash Temperature | 150°F (65°C) minimum; electronically controlled |
| Rinse / Booster Temperature | 185–194°F (85–90°C) minimum; electronically controlled |
| Booster Capacity / Element | 2.62 U.S. gal (10 L) / 4.0 kW (1-phase) or 6.0 kW (3-phase) |
| Wash Tank Element | 4.0 kW |
| Motor-Pump | 1 HP wash pump |
| Water Consumption | 0.85 U.S. gal (2.7 L) per cycle; approx. 25.5 U.S. gal (96.5 L) per hour at 30 racks/hr |
| Water Supply | Hot water 122°F (50°C) minimum; 30 psi (2 bar) dynamic pressure |
| Water Inlet Connection | 3/4" connection |
| Drain Connection | 1" ID drain (drain pump) |
| Power Supply | 208–240V / 60 Hz / 1- or 3-phase |
| Amperage / Max Power | Single phase: 4.8 kW (≈19.8–22.8 A); Three phase: 6.8 kW (≈16.2–18.7 A) |
| Construction | AISI 304 brushed stainless steel body, housing & wash tank; reinforced fiberglass wash/rinse arms; adjustable bullet feet |
| Controls & Safety | Front control panel with digital temperature displays; automatic fill & level regulation; safety two-way door micro-switch |
| Included Equipment | This unit comes fully equipped and ready to install, including one open combination rack for glassware or utensils and one peg dish rack for plates and bowls. It features built-in detergent, rinse additive, and drain pumps, along with an integrated atmospheric booster that includes a stainless steel tank and heating element. A double filtration system with dFilter and scrap filter ensures cleaner wash water and easier maintenance. The dishwasher also includes adjustable bullet feet and an automatic fill and water-level regulation system for effortless setup and operation. |
| Width | 29.41 in. (74.7 cm) |
| Height | 76.85 in. (195.2 cm) |
| Depth | 33.74 in. (85.7 cm) |
| Weight | 340 lbs (154.22 kg) |
Manufacturer’s limited warranty: one year parts and labor (certain conditions apply). Refer to the manufacturer’s manual for complete warranty details.
