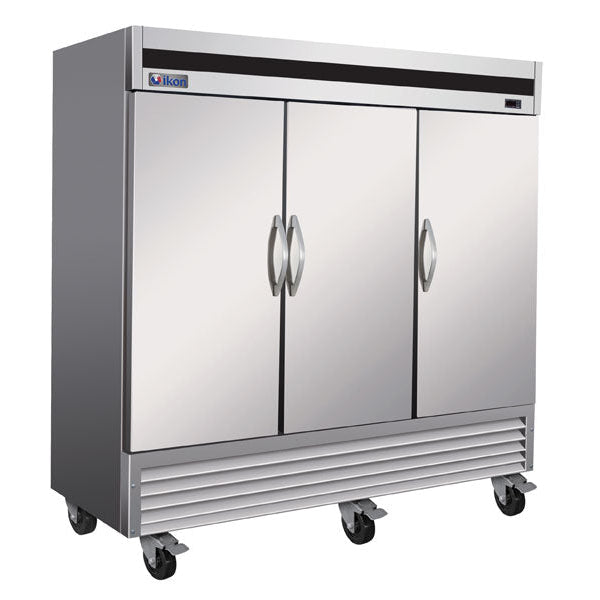

IKON – 81" Upright Bottom Mount Freezer – IB81F-DV
Ask an Expert
Couldn't load pickup availability
Three full-size doors provide large-capacity storage for high-volume kitchens.
- Bottom-mounted compressor improves efficiency and simplifies maintenance.
- Electronic LED controls make monitoring and adjusting temperature easy.
- Nine adjustable heavy-duty epoxy-coated shelves support heavy product loads.
- 4" locking casters allow smooth mobility and stable positioning during use.
This IKON IB81F-DV spacious three-section freezer is ideal for restaurants and commercial kitchens that need reliable frozen storage with quick access to ingredients. Its durable stainless steel design is built for long-term use and fast daily workflow.
The heated door frame, self-closing doors, and tool-free magnetic gaskets help maintain consistent temperatures while reducing frost buildup. With a wide interior and easy-to-clean layout, this unit supports busy operations that rely on dependable performance.
| Model | IKON IB81F-DV |
| Type | Three-door upright reach-in freezer (bottom-mounted compressor) |
| Temperature Range | 0 to -10°F (-17 to -23°C) |
| Refrigeration System | Self-contained, bottom mount; heated condensate pan |
| Refrigerant | R-290 (natural); CFC-free foam insulation |
| Controller & Display | Electronic thermostat with digital LED display |
| Door | 3 solid self-closing doors; stay-open at 90°; locking; heated door frames; magnetic gaskets |
| Shelving | (9) adjustable heavy-duty epoxy-coated wire shelves |
| Interior Material | 304 stainless steel |
| Exterior Material | 430 stainless steel |
| Electrical | 115/208–230V / 60 Hz / 1-phase; NEMA L14-20P; 10 ft cord |
| Amperage / HP | 8 A / 1-1/4 HP |
| Casters | 4" casters standard; front locking |
| Ambient Rating | 40–90°F |
| Included | Cabinet, (9) shelves, 4" casters, power cord |
| Exterior Width | 81.0 in (2057 mm) |
| Exterior Depth | 32.7 in (831 mm) |
| Exterior Height | 82.3 in (2090 mm) |
| Interior (W × D × H) | 76.4 × 27.6 × 50.2 in (1941 × 701 × 1275 mm) |
| Weight (Shipping) | 625 lb (283.5 kg) |
Two-year parts and labour warranty, plus an additional three-year compressor parts warranty (five years total on compressor). Certain conditions apply. Please refer to the manufacturer’s manual for full warranty details.
