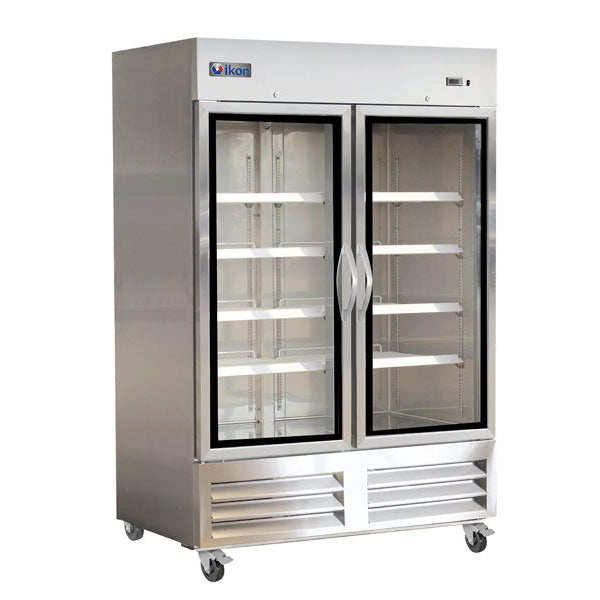

IKON – 54" Glass Door Upright Bottom Mount Freezer – IB54FG
Ask an Expert
Couldn't load pickup availability
Double glass doors provide clear visibility for quick product checks.
- Wide 54" reach-in design offers generous storage for high-volume kitchens.
- Adjustable epoxy-coated shelves let you customize storage for different package sizes.
- Self-closing doors help maintain consistent freezing temperatures during service.
- Front-locking casters keep the unit stable while still allowing easy movement.
This IKON IB54FG has glass doors that allow staff to see inventory at a glance, which helps reduce door openings and makes it easier to keep track of stock levels. The digital LED temperature display is easy to read, so you can confirm that frozen items are being stored safely without interrupting workflow.
Each door includes four heavy-duty shelves with clip-on tag holders, making it simple to label and organize products by category or date. A built-in heating element in the door frame helps eliminate condensation, keeping the glass clear and the unit looking clean for both back-of-house and customer-facing applications.
| Model | IKON IB54FG |
| Type | Two-door glass reach-in freezer (bottom-mounted compressor) |
| Temperature Range | 0 to -10°F (-17 to -23°C) |
| Refrigeration System | Self-contained, bottom mount; door frame with built-in condensate heating element |
| Refrigerant | R-290 (natural); CFC-free foam insulation |
| Controller & Display | Electronic thermostat with digital LED temperature display |
| Door | Glass, self-closing; stays open at 90°; locking; magnetic gasket (tool-free replacement) |
| Shelving | (8) adjustable heavy-duty epoxy-coated wire shelves with clip-on tag holders (4 per door) |
| Interior Material | 304 stainless steel |
| Exterior Material | 430 stainless steel |
| Electrical | 115V / 60 Hz / 1-phase; NEMA 5-15P; 10 ft cord |
| Amperage / HP | 9 A / 1 HP |
| Casters | 4" casters standard; front locking |
| Ambient Rating | Designed for 40–90°F ambient conditions |
| Included | Freezer cabinet, (8) shelves, 4" casters, power cord |
| Exterior Width | 53.9 in (1370 mm) |
| Exterior Depth | 31.9 in (810 mm) |
| Exterior Height | 82.3 in (2090 mm) |
| Interior (W × D × H) | 49.4 × 27.6 × 50.2 in (1255 × 700 × 1275 mm) |
| Weight (Shipping) | 598 lb (271 kg) |
Two-year parts and labour warranty, plus an additional three-year compressor parts warranty (five years total on compressor). Certain conditions apply. Please refer to the manufacturer’s manual for full warranty details.
