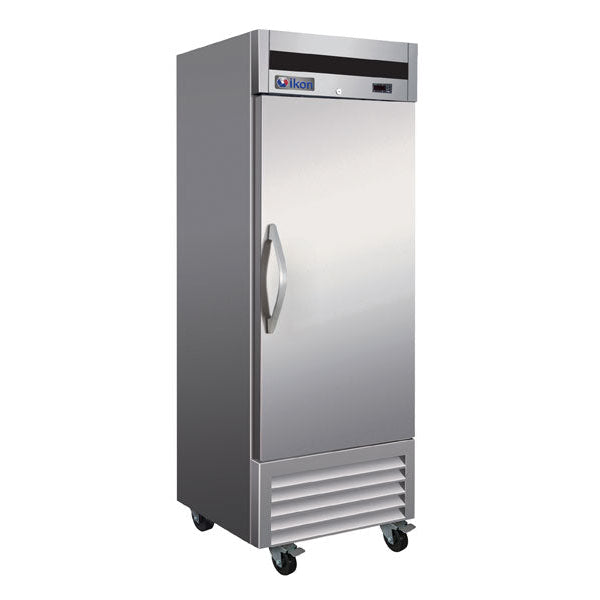

IKON – 27" Upright Bottom Mount Freezer – IB27F
Ask an Expert
Couldn't load pickup availability
Maintains precise freezing temperatures between 0 to -10°F (-17 to -23°C).
- Digital LED thermostat ensures accurate temperature monitoring.
- Bottom-mounted compressor design improves efficiency and service access.
- Three adjustable heavy-duty epoxy-coated wire shelves per door.
- Self-closing, lockable door with 90° stay-open feature and field-reversible swing.
This IKON IB27F freezer is designed for commercial kitchens that need reliable, consistent cold storage with minimal maintenance. The bottom-mounted compressor stays cooler in busy kitchens and allows easier access for cleaning and servicing.
Its heated condensate pan and door frame eliminate condensation build-up, while durable stainless steel construction ensures long-term performance in demanding environments.
| Model | IKON IB27F |
| Type | Single-door reach-in freezer (bottom-mounted compressor) |
| Temperature Range | 0 to -10°F (-17 to -23°C) |
| Refrigeration System | Self-contained, bottom mount; heated condensate pan |
| Refrigerant | R-290 (natural); CFC-free foam insulation |
| Controller & Display | Electronic thermostat with digital LED temperature display |
| Door | Solid, self-closing; stays open at 90°; locking; field reversible; tool-free magnetic gasket |
| Shelving | (3) adjustable heavy-duty epoxy-coated wire shelves |
| Interior Material | 304 stainless steel |
| Exterior Material | 430 stainless steel |
| Electrical | 115V / 60 Hz / 1-phase; NEMA 5-15P; 10 ft cord |
| Amperage / HP | 11 A / 5/8 HP |
| Casters | 4″ casters standard; front locking |
| Ambient Rating | Designed for 40–90°F (optimal performance) |
| Included | Freezer cabinet, (3) shelves, 4″ casters, power cord |
| Exterior Width | 26.8 in (680 mm) |
| Exterior Depth | 32.7 in (830 mm) |
| Exterior Height | 82.3 in (2090 mm) |
| Interior (W × D × H) | 22.2 × 27.6 × 50.2 in (564 × 700 × 1275 mm) |
| Weight (Shipping) | 329 lb (149 kg) |
Two-year parts and labour warranty, plus an additional three-year compressor parts warranty (five years total on compressor). Certain conditions apply. Please refer to the manufacturer’s manual for full warranty details.
