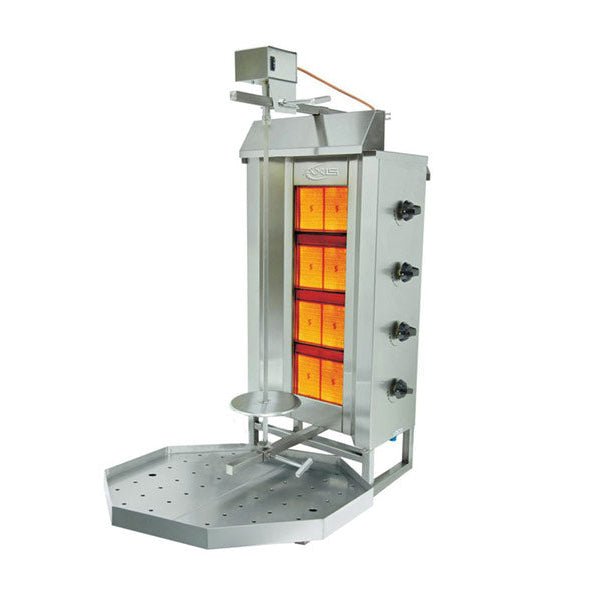

Axis AX-VB4 Vertical Broiler & Gyro Machine
The Axis AX-VB4 is a 4-burner commercial vertical broiler built for high-volume gyro, shawarma, and al pastor programs. Four independently controlled infrared burners deliver fast, even browning, while the E-Z slide dual-rail carriage lets you move the skewer closer to or farther from the heat for precise cooking control. The top-mounted, enclosed motor stays clear of grease and drippings for a longer service life.
Key Features:
- 4 individually controlled infrared burners for even, high-volume cooking
- Handles up to 176 lb (80 kg) of meat per cook
- Top-mounted enclosed motor stays out of the splash zone
- E-Z slide dual-rail carriage for precise distance and angle control
- Adjustable side heat deflectors focus heat and reduce fuel waste
- Reversible rotation (clockwise or counter-clockwise) for even edge finishing
What's Included in the Box:
- Axis AX-VB4 vertical broiler unit
- Top-mounted rotation motor
- LP conversion kit (unit ships ready for natural gas installation)
Built on an all AISI 304 stainless steel, unitized base for durability and easy daily cleaning, the AX-VB4 includes a large, removable drip tray that simplifies cleanup. Each burner is controlled independently, so you can brown the exterior while keeping the interior juicy, and the adjustable heat deflectors help focus heat where you need it while cutting down on wasted fuel. The unit ships ready for natural gas and includes an LP conversion kit for propane setups.
| Model | AX-VB4 |
| Type | Gas Vertical Broiler / Gyro Machine |
| Burners | (4) individually controlled infrared burners |
| Total Heat Input | 44,382 BTU/hr |
| Meat Capacity | 176 lb (80 kg) maximum |
| Spit Height | 30 in. |
| Rotation | Clockwise or counter-clockwise |
| Heat Management | Adjustable left & right heat deflectors; E-Z slide dual-rail carriage for precise distance control |
| Motor | Top-mounted enclosed motor, 115V AC, 60Hz |
| Construction | AISI 304 stainless steel; unitized base; removable drip tray |
| Fuel | Natural gas or propane (LP conversion kit included) |
| Electrical | 120V, NEMA 5-15P plug (motor) |
| Gas Pressure | Natural Gas: 7-8 in. W.C.; Propane: 10-13 in. W.C. |
| Certifications | ETL and NSF approved |
| Width | 18 in. (45.7 cm) |
| Height | 46 in. (116.8 cm) |
| Depth | 22 in. (55.9 cm) |
| Weight | 75 lbs (34.02 kg) |
