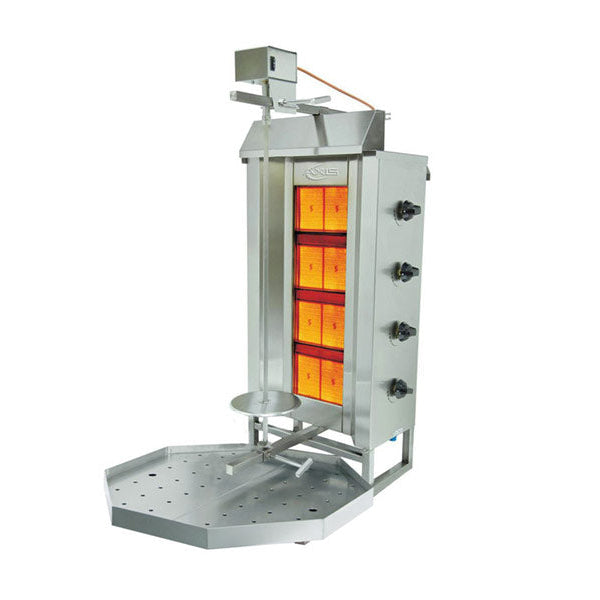

Axis - AX-VB4 Vertical Broiler / Gyro Machine
Ask an Expert
Couldn't load pickup availability
Four independently controlled infrared burners for fast, even browning.
- Top-mounted enclosed motor keeps grease away for longer service life.
- Smooth sliding carriage moves the skewer closer or farther from the heat for perfect control while cooking.
- Adjustable side heat deflectors focus heat and reduce fuel waste.
- Works with natural gas or propane; simple field conversion.
The Axis AX VB4 is built for busy gyro, shawarma, and al pastor programs. Independent burner knobs let you crisp the outside while keeping the core juicy, and the reversible rotation helps you finish edges evenly. A large drip tray simplifies cleanup between sessions.
Operators get stainless construction throughout, smooth carriage travel, and a stable base that’s easy to wipe down. The layout keeps controls accessible, while the guarded, top-mounted motor avoids the splash zone for reliability over time.
| Model | AX-VB4 |
| Type | Gas Vertical Broiler / Gyro Machine |
| Burners | (4) individually controlled infrared burners |
| Total Heat Input | 45,520 BTU/hr |
| Meat Capacity | ≈120 lb (54 kg) maximum |
| Spit Length | 28 in. |
| Rotation | Clockwise or counter-clockwise |
| Heat Management | Adjustable left & right heat deflectors; smooth sliding carriage for precise distance control |
| Motor | Top-mounted enclosed motor |
| Construction | AISI 304 stainless steel; unitized base; removable drip tray |
| Fuel | Natural gas or propane (LP conversion kit included) |
| Electrical | 110–120V, 60 Hz (motor) |
| Gas Pressure | 10–13 in. w.c. (per manufacturer manual) |
| Certifications | NSF; cETLus (per listings) |
| Width | 18 in. (45.7 cm) |
| Height | 46 in. (116.8 cm) |
| Depth | 22 in. (55.9 cm) |
| Weight | 75 lbs (34.02 kg) |
One year parts and labor (certain conditions apply). Refer to the manufacturer’s manual for complete warranty details.
