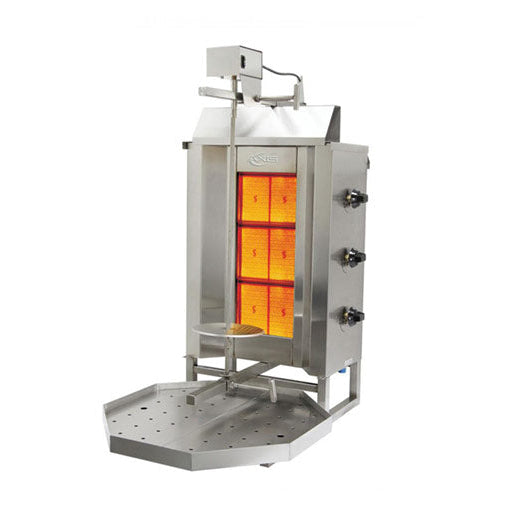

Axis – AX-VB3 Vertical Broiler / Gyro Machine
Ask an Expert
Couldn't load pickup availability
Three individually controlled infrared burners deliver even browning and fast recovery.
- Top-mounted enclosed motor stays away from grease for longer life.
- Adjustable side heat deflectors help focus heat and reduce waste.
- Dual-rail carriage lets you fine-tune the meat’s distance from the burners.
- Works with natural gas or propane for flexible installation.
Built for busy gyro, shawarma, and al pastor programs, the unitized stainless body is sturdy and easy to wipe down at the end of service. The removable drip tray streamlines cleanup and helps keep the workspace tidy.
The Axis AX-VB3 is simple: set each burner as needed, adjust the carriage on the E-Z slide rails, and choose clockwise or counter-clockwise rotation to crisp evenly. A flame-failure safety cuts gas if the flame goes out for added peace of mind.
| Model | AX-VB3 |
| Type | Gas Vertical Broiler / Gyro Machine |
| Burners | (3) individually controlled infrared burners |
| Total Heat Input | 34,140 BTU/hr |
| Meat Capacity | ≈88–90 lb (40 kg) maximum |
| Spit Length | 24 in. |
| Rotation | Clockwise or counter-clockwise |
| Heat Management | Adjustable left & right heat deflectors; E-Z slide dual-rail carriage |
| Motor | Top-mounted enclosed motor |
| Construction | AISI 304 stainless steel; unitized base; removable drip tray |
| Fuel | Natural gas or propane (LP conversion kit included) |
| Electrical | 110–120V, 60 Hz (motor) |
| Gas Pressure | 10–13 in. w.c. (per manufacturer manual) |
| Certifications | NSF; cETLus (per listings) |
| Width | 18 in. (45.7 cm) |
| Height | 39 in. (99.1 cm) |
| Depth | 22 in. (55.9 cm) |
| Weight | 62 lbs (28.12 kg) |
One year parts and labor (certain conditions apply). Refer to the manufacturer’s manual for complete warranty details.
