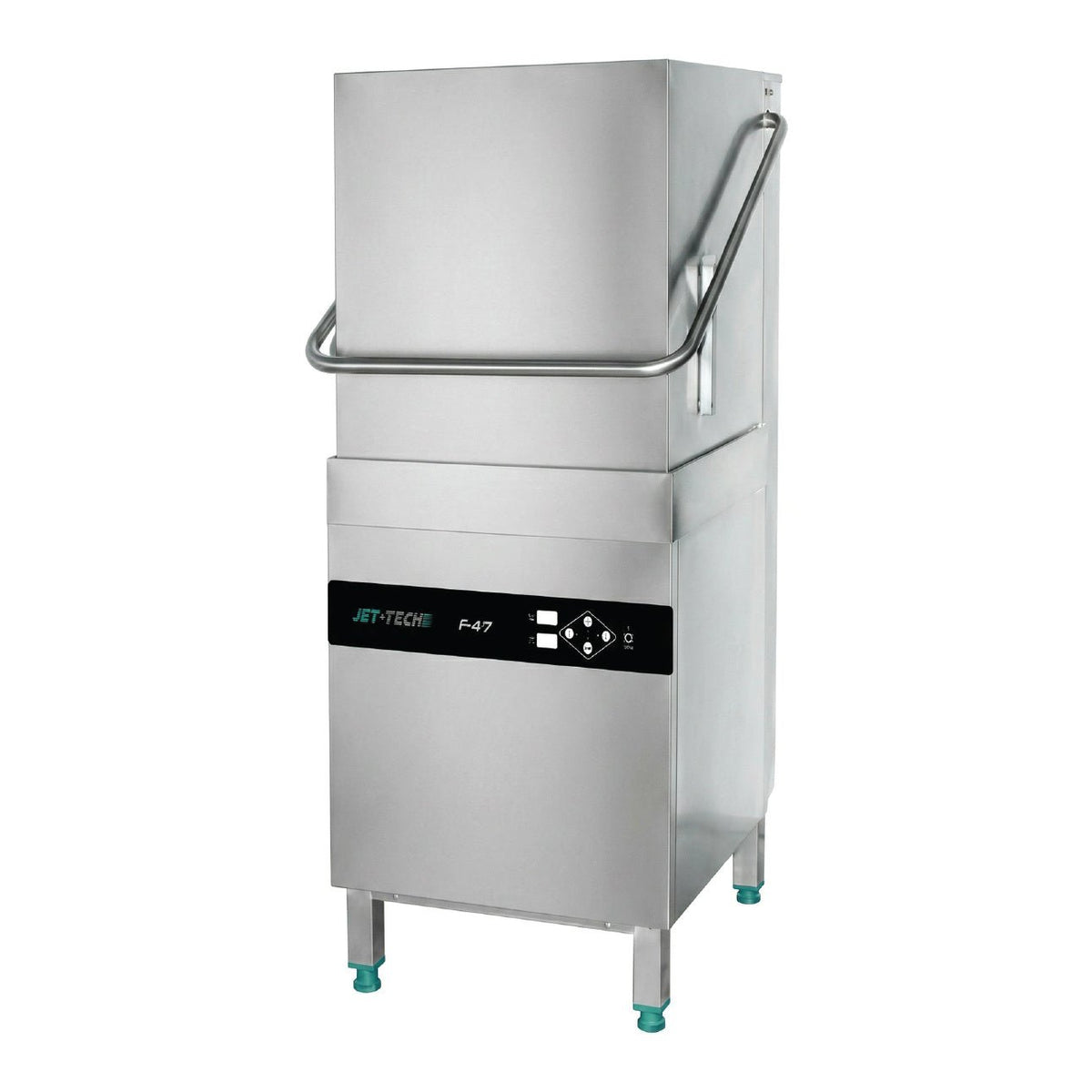

Jet-Tech – F-47 Commercial High-Temp Door-Type Dishwasher
Secure Payment Options
Ask an Expert
Couldn't load pickup availability
High-Temp Door-Type Dishwasher Built for High-Volume Kitchens
The Jet-Tech F-47 is a hood-type commercial dishwasher, also called a door-type machine, from the Defender Series. Built for busy restaurants, hotels, schools and care kitchens, it washes and sanitizes with high-temperature water.
Key Features:
- Washes up to 40 racks per hour to keep up with busy kitchens
- Four cycle options: 90, 120, 180 and 600 seconds
- 6 kW electric booster heater for high-temperature sanitizing
- Uses just 0.66 gallons of water per rack to keep water costs down
- Hood-type design takes standard 20" x 20" racks
- Hard-wired 208-240V, 3-phase power with a 9.86 kW total load
What's Included in the Box:
- 1x Jet-Tech F-47 High-Temp Hood-Type Dishwasher
- 1x 20"x20" peg dish rack
- 1x 20"x20" flatware rack
The F-47 is built from durable stainless steel for high-volume use. The hood lifts to load and unload racks, and closing it starts the cycle. Two digital temperature displays show the wash and rinse tank water in real time, and the tank heats electrically and fills automatically.
Pick the cycle to match the load: 90 seconds for lightly soiled tableware and glassware, 120 seconds for normal soil, and 180 seconds for heavy soil, serving dishes and pans. The 600-second cycle is a low-temperature disinfection mode. The 40 racks per hour rating is based on the 90-second cycle, and the chamber fits items up to 16.6 in. tall.
Before you order, check the setup: hard-wired 208-240V, 3-phase power, a hot water line (122-140°F at 29-58 psi flowing pressure) and a drain connection for the 1-1/4 in. hose. It stands 56.1 in. tall with the hood closed and 73.9 in. tall with the hood open, so leave room above it for the hood to open. It is built for a dish table top height of 33.4 in., so check that your tabling matches. Detergent and rinse aid dispensers are not included, and local regulations may require an exhaust hood or fan over the machine.
At a glance
- Water Hot water, 122-140°F (50-60°C)Pressure: 29-58 psi flowing (2-4 bar)Inlet: 3/4 in. connection, 5 ft length
- Drain 1-1/4 in. outlet, 6.5 ft hose
- Electrical 208-240 V / 60 Hz / 3 phPlug: None, hard wiredMax power: 9.86 kW total connected load
| Model | F-47 |
| Width | 28.1 in. (71.5 cm) |
| Depth | 31.5 in. (80 cm) |
| Height | 56.1 in. (142.5 cm) closed, 73.9 in. (187.7 cm) hood open |
| Shipping Weight | 319 lb (145 kg) |
| Racks per Hour | 40 (based on the 90 sec cycle) |
| Rack Size | 20 x 20 in. |
| Cycle Time | 90 / 120 / 180 / 600 sec (600 sec is a low-temperature disinfection mode) |
| Tank Capacity | 6.9 gal (26 L) |
| Electrical | 208-240 V / 60 Hz / 3 ph |
| Plug Type | None, hard wired |
| Max Power | 9.86 kW total connected load |
| Wash Pump | 0.71 kW |
| Rinse Pump | 0.15 kW |
| Tank Heater | 3 kW |
| Booster Heater | 6 kW electric |
| Water Use | 0.66 gal (2.5 L) per cycle |
| Water Supply | Hot water, 122-140°F (50-60°C) |
| Water Pressure | 29-58 psi flowing (2-4 bar) |
| Water Hardness | 1.5-4.3 gpg (25-75 mg/L) |
| Water Inlet | 3/4 in. connection, 5 ft length |
| Drain | 1-1/4 in. outlet, 6.5 ft hose |
| Rinse Aid Inlet | 1/4 in. tube, 8 ft length |
| Detergent Inlet | 1/4 in. tube, 8 ft length |
| Sanitizing | High temperature |
| Wash Temperature | 140-149°F (60-65°C), factory setting |
| Final Rinse Temperature | 181-194°F (83-90°C), factory setting |
| Display | Digital temperature display |
| Auto Fill | Automatic |
| Maximum Wash Height | 16.6 in. (42.2 cm) |
| Dish Table Height | 33.4 in. (85 cm) to table top |
| Minimum Exhaust | 206 CFM (350 m³/h) where an exhaust is required |
| Racks Included | 1 peg, 1 flatware |
| Net Weight | 181 lb (82.2 kg) |
| Package Size | 34.5 x 30.8 x 61.7 in. (88 x 78 x 157 cm) |
| Construction | Stainless steel |
| Use | Commercial installation only, indoor use |
Connection points in the diagram: A is the water inlet (3/4 in. connection, 5 ft length). B is the power supply (hard wired, 208-240V, 60 Hz, 3 phase). C is the drain outlet (1-1/4 in., 6.5 ft hose). D is the rinse aid inlet (1/4 in. tube, 8 ft length). E is the detergent inlet (1/4 in. tube, 8 ft length).
