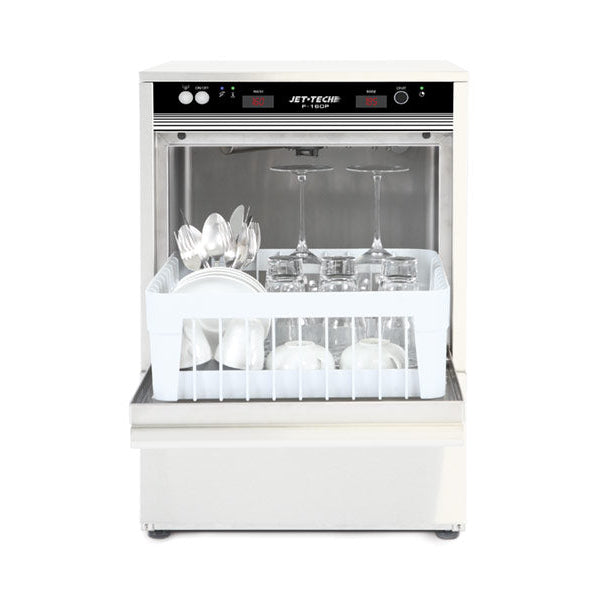

Jet-Tech F-16DP High-Temp Undercounter Cup & Glass Washer
Ask an Expert
Couldn't load pickup availability
Fast 160-second total cycle; up to 24 racks per hour.
- Built-in booster delivers high-temp sanitation every cycle.
- Automatic program delivers a 150°F wash followed by a 185°F sanitizing rinse.
- Compact, quiet, double-wall stainless construction for undercounter installs.
- Efficient water usage helps save on utilities every cycle.
- “Ready-to-run” package with built-in detergent/rinse pumps and drain pump, plus two racks included.
The F-16DP is engineered for reliability and easy upkeep. Stainless-steel upper and lower revolving wash/rinse arms are simple to remove and clean without tools, and individual digital gauges display wash and rinse temperatures at a glance for confident operation. A sanitary labyrinth door design eliminates the need for a gasket while a safety micro-switch pauses the pump if the door opens mid-cycle.
Efficiency features are built in throughout. Independently operated heating elements alternate between the wash tank and booster to minimize energy draw, while double-insulated side and top panels dampen noise and ambient heat. Front-control service access and an overflow-tube filter simplify maintenance.
| Model | Jet-Tech F-16DP |
| Type | Undercounter Glasswasher |
| Rack Size | 15.75" × 15.75" (400 × 400 mm) |
| Racks per Hour | 24 racks/hour |
| Cycle Times | 145-sec wash + 15-sec rinse (160 sec total) |
| Wash Tank Capacity | 3.0 U.S. gal (11 L) |
| Wash Temperature | 150°F (65°C) |
| Rinse / Booster Temperature | 185–194°F (85–90°C) |
| Booster Capacity / Element | 0.79 U.S. gal (3.0 L) / 2400 W |
| Wash Tank Element | 2000 W |
| Motor-Pump | 0.5 HP with thermal overload protection |
| Water Consumption | 0.53 U.S. gal (2.0 L) per cycle; approx. 15 U.S. gal (56.7 L) per hour |
| Water Supply | 1/2" hot water supply, 140°F (60°C) recommended; 30 psi dynamic pressure (PRV may be required) |
| Water Inlet Connection | 3/4" male hose connection (hose included) |
| Drain Connection | 1" ID (25.4 mm); max drain height 36" (915 mm) (hose included) |
| Power Supply | 208–240V / 60 Hz / 1-phase |
| Amperage / Max Power | 12.9 A / 2600 W |
| Construction | 304 (18/10) brushed stainless steel body, chassis, wash tank; double-wall insulated top & sides |
| Controls & Safety | Digital wash/rinse temperature gauges; door safety micro-switch; automatic fill & level regulation |
| Included Equipment | (1) 16-compartment angled glassware rack and (1) open combination rack; built-in detergent and rinse-additive pumps; built-in automatic drain pump |
| Width | 20.25 in. (51.4 cm) |
| Height | 29.75 in. (75.6 cm) |
| Depth | 20.25 in. (51.4 cm) |
| Weight | 116 lbs (52.6 kg) |
Manufacturer’s limited warranty: one year parts and labor (certain conditions apply). Refer to the manufacturer’s manual for complete warranty details.
