High-temp sanitizing rinse delivers reliable, NSF-compliant results.
- Durable AISI 304 stainless steel body and tank withstand daily commercial use.
- Filter system and double scrap filters simplify cleaning and reduce maintenance time.
- Alternating booster/tank heating reduces peak power draw for better energy efficiency.
- Flexible installation — set up inline or in a corner with simple field adjustments.

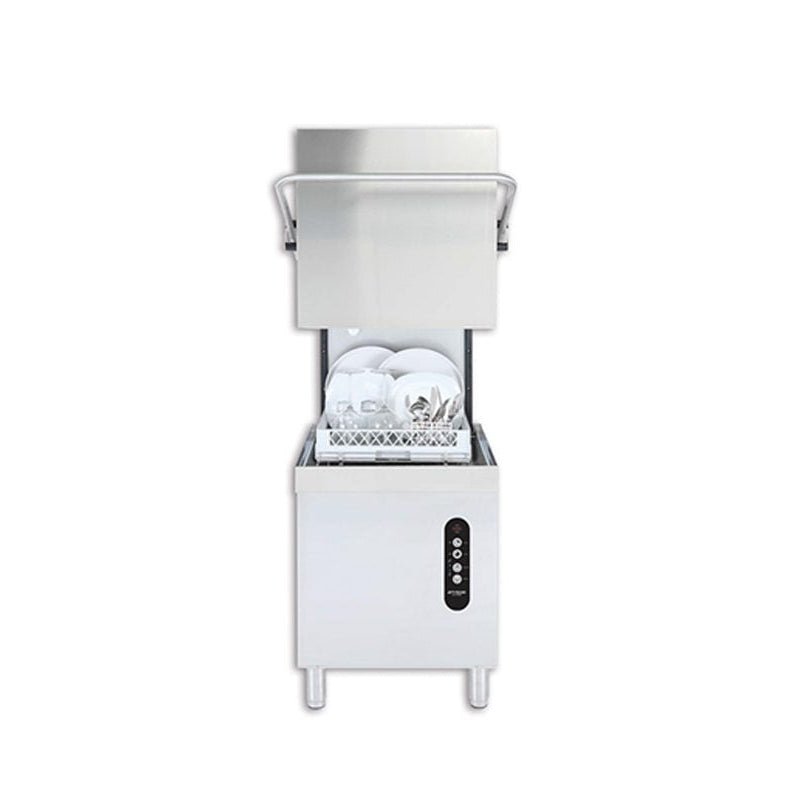

This door-type dishwasher is designed for smooth daily operation in busy commercial kitchens. The tall door opening makes loading comfortable, and the front control panel clearly displays wash and rinse temperatures for quick checks. Reinforced fiberglass wash and rinse arms remove easily, helping speed up routine cleaning.
Daily use is straightforward: the unit fills automatically, maintains water level on its own, and includes a safety micro-switch that stops the wash pump if the door opens mid-cycle. Standard 19.75" square racks ensure compatibility with common dish racks already used in most kitchens.
| Model | Jet-Tech EV22 |
| Type | Door Type Dishwasher (High Temperature) |
| Rack Size | 19.75" × 19.75" (500 × 500 mm) |
| Racks per Hour | Up to 30 racks/hour |
| Cycle Times | Two programmable cycles: 2–3 minutes; final rinse 12–15 seconds |
| Wash Tank Capacity | 5.25 U.S. gal (21 L) |
| Wash Temperature | 150°F (65°C) minimum; electronically controlled |
| Rinse / Booster Temperature | 185–194°F (85–90°C) minimum; electronically controlled |
| Booster Capacity / Element | 2.62 U.S. gal (10 L) / 4.0 kW (1-phase) or 6.0 kW (3-phase) |
| Wash Tank Element | 4.0 kW |
| Motor-Pump | 1 HP wash pump |
| Water Consumption | 0.85 U.S. gal (2.7 L) per cycle; approx. 25.5 U.S. gal (96.5 L) per hour at 30 racks/hr |
| Water Supply | Hot water 122°F (50°C) minimum; 30 psi (2 bar) dynamic pressure |
| Water Inlet Connection | 3/4" connection |
| Drain Connection | 1" ID drain (drain pump) |
| Power Supply | 208–240V / 60 Hz / 1- or 3-phase |
| Amperage / Max Power | Single phase: 4.8 kW (≈19.8–22.8 A); Three phase: 6.8 kW (≈16.2–18.7 A) |
| Construction | AISI 304 brushed stainless steel body, housing & wash tank; reinforced fiberglass wash/rinse arms; adjustable bullet feet |
| Controls & Safety | Front control panel with digital temperature displays; automatic fill & level regulation; safety two-way door micro-switch |
| Included Equipment | This unit comes fully equipped and ready to install, including one open combination rack for glassware or utensils and one peg dish rack for plates and bowls. It features built-in detergent, rinse additive, and drain pumps, along with an integrated atmospheric booster that includes a stainless steel tank and heating element. A double filtration system with dFilter and scrap filter ensures cleaner wash water and easier maintenance. The dishwasher also includes adjustable bullet feet and an automatic fill and water-level regulation system for effortless setup and operation. |
| Width | 29.41 in. (74.7 cm) |
| Height | 76.85 in. (195.2 cm) |
| Depth | 33.74 in. (85.7 cm) |
| Weight | 340 lbs (154.22 kg) |
Manufacturer’s limited warranty: one year parts and labor (certain conditions apply). Refer to the manufacturer’s manual for complete warranty details.
