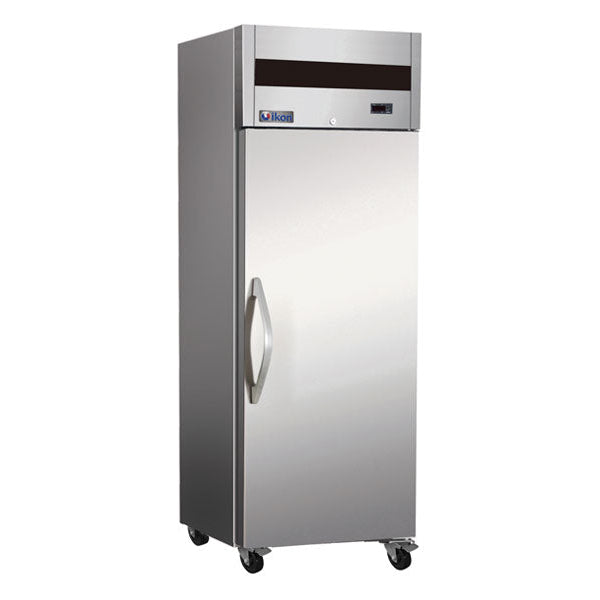

One-Door Reach-In Refrigerator With Top-Mount Cooling
The Ikon IT28R is a 27-inch, one-door commercial reach-in refrigerator that holds 33°F to 40°F (0.5°C to 4.4°C). The compressor sits on top, up and away from floor-level dust and debris, which leaves a taller interior with 18.3 cu. ft. of cold storage. Stainless steel inside and out makes daily cleaning quick.
Key Features:
- Holds 33°F to 40°F (0.5°C to 4.4°C) with an electronic thermostat and digital display
- 18.3 cu. ft. of storage with a 59.1-inch tall interior
- Three adjustable epoxy-coated wire shelves
- Locking, self-closing door stays open at 90°, and the swing can be reversed on site
- 430 stainless steel exterior with a 304 stainless steel interior
- R-290 natural refrigerant, 3 amps on 115V with a NEMA 5-15P plug
What's Included in the Box:
- Ikon IT28R one-door top-mount reach-in refrigerator
- (3) adjustable epoxy-coated wire shelves
- (4) 4" casters, front pair locks
A heated condensate pan evaporates meltwater, and magnetic door gaskets can be replaced without tools. Defrost runs automatically every 6 hours, and the interior light turns on when the door opens.
The thermostat is set to 34°F to 38°F (1.1°C to 3.3°C) at the factory. The 1/5 HP compressor draws 3 amps on 115V. Plug the refrigerator into its own dedicated circuit with no extension cord, and run it in a kitchen between 40°F and 90°F (4.4°C and 32.2°C). Leave at least 2 inches from any wall and 12 inches of open space above the unit.
The spec sheet, installation and operation manual, parts list and warranty terms are free PDF downloads on this page.
At a glance
- Electrical 115 V / 60 Hz / 1 phPlug: NEMA 5-15PCord: 10 ftAmps: 3 A
- Installation Dedicated circuit, no extension cord, 40-90°F (4.4-32.2°C) roomClearances: 2 in. from walls, 12 in. above
| Model | IT28R |
| Width | 26.8 in. (68.1 cm) |
| Depth | 32.7 in. (83.1 cm) |
| Height | 82.3 in. (209.0 cm) |
| Shipping Weight | 307 lb (139 kg) |
| Temperature | 33°F to 40°F (0.5°C to 4.4°C) |
| Capacity | 18.3 cu. ft. |
| Doors | 1 solid, self-closing, lockable |
| Electrical | 115 V / 60 Hz / 1 ph |
| Plug Type | NEMA 5-15P |
| Amps | 3 A |
| Power Cord | 10 ft |
| Shelves | 3 adjustable epoxy-coated wire |
| Compressor | 1/5 HP, top-mounted |
| Refrigerant | R-290 |
| Interior Width | 22.2 in. (56.4 cm) |
| Interior Depth | 27.6 in. (70.1 cm) |
| Interior Height | 59.1 in. (150.1 cm) |
| Shelf Area | 14.0 sq. ft. |
| Defrost | Automatic, every 6 hours |
| Factory Setting | 34°F to 38°F (1.1°C to 3.3°C) |
| Condensate | Heated pan evaporates the water |
| Door Swing | Field reversible |
| Door Gaskets | Magnetic, tool-free replacement |
| Lighting | Interior light, turns on when the door opens |
| Controls | Electronic thermostat, digital display |
| Casters | 4 in., front pair locks |
| Exterior | 430 stainless steel |
| Interior | 304 stainless steel |
| Insulation | CFC-free foam |
| Installation | Dedicated circuit, no extension cord, 40-90°F (4.4-32.2°C) room |
| Clearances | 2 in. from walls, 12 in. above |
2-Year Warranty + 5-Year Compressor Coverage
The Ikon IT28R is backed by MVP Group Corporation's factory warranty for commercial use.
- Coverage Period: Two (2) years parts and labor from the date of original purchase, plus three (3) more years of compressor-only coverage from the date of installation, for five (5) years of compressor coverage in total. Factory time limits based on the shipment date also apply.
- What's Covered: Defects in material or workmanship under normal use and maintenance, for units installed in Canada. The first two years include parts, labor and travel within 100 miles (160 km) round trip. The extra three years cover the compressor only, with no labor. Light bulbs and door gaskets are covered for 90 days, parts only.
- What's Not Covered: Normal wear and tear, improper installation, lack of basic maintenance, misuse, accidents and shipping damage. Coverage is for the original purchaser only.
- Getting Service: Contact intoCooking Inc. at info@intocooking.ca or 1 (888) 583-3477 with your model number, serial number and proof of purchase. We will help you start your claim with MVP Group.
Certain conditions apply, including proper installation and maintenance.
